1.Limited Ceiling Space
Vertical air curtains are installed on either side of the entrance, providing floor-to-ceiling coverage.
Example: Buildings with low ceilings or ceiling obstructions.
2.Uniform Air Barrier
Better prevention of air exchange
More effective in maintaining internal temperature as you can install air curtain on each side of the door.
Example: High-traffic entrances, climate-sensitive areas.
3.Easier Maintenance and Repairs
Vertical air curtains are more accessible for maintenance
Horizontal air curtains may require elevated work
Example: Retail stores, facilities requiring frequent maintenance.
4.Aesthetic and Functional Design
Vertical air curtains blend with door frames
Horizontal air curtains may be more intrusive
Example: Modern office buildings, upscale commercial spaces.
5.Improved Airflow Management
Vertical air curtains create a strong, continuous air stream
Horizontal air curtains may have uneven airflow in tall spaces
Example: Cold storage areas, high-ceiling facilities.
6.Optimal Energy Efficiency in Specific Environments
Vertical air curtains reduce energy loss in tall entrances
Horizontal air curtains are effective but less suited for certain door sizes
Example: Industrial facilities, large commercial buildings.
Conclusion
By considering factors such as doorway size, space constraints, coverage efficiency, installation and maintenance ease, airflow control, and specific application needs, you can clearly understand when to choose a vertical type air curtain over a horizontal one.

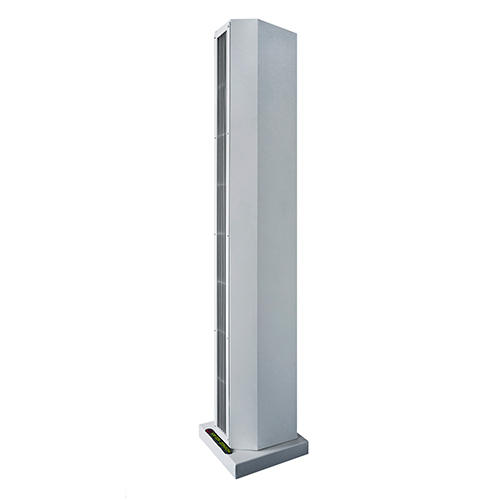

Axial flow motor
Metal case for fire resistance
Easy for installation and maintenance
Powder coating for rust-proof
Door switch
Remote control.
Filter net
Heating function
Different voltages and frequencies are available
Model | Size
mm |
Power
w |
Air Volume m3/h | Air Speed
m/s |
Noise
dB |
Weight
kg |
FM-ZC1500 | 320*270*1500 | 85*5 | 3800 | 10 | 59 | 42 |
FM-ZC1800 | 320*270*1800 | 85*6 | 4500 | 10 | 59 | 52 |
FM-ZC2000 | 320*270*2000 | 85*7 | 5000 | 10 | 60 | 60 |
FM-ZC2200 | 320*270*2200 | 85*8 | 5600 | 10 | 61 | 68 |
FM-ZC2400 | 320*270*2400 | 85*9 | 6100 | 10 | 62 | 78 |
